TYRES IN SUPER-ELASTIC RUBBER FOR INDUSTRIAL LOGISTICS

THE MOST IMPORTANT CHARACTERISTICS

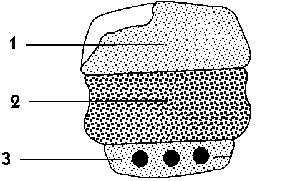

The full super-elastic rings are built with three different types of rubber.

     1) The perimeter of the external part, the tread, is in anti-abrasion rubber, with
         a low coefficient of resistance to the rolling.

     2) The intermediate part is in elastic rubber, to quench the vibrations and the   crashes,
          giving to the ring an optimal comfort of gear.


     3) The heel, being the part which is in contact with the disk, is in rubber of high elastic
          module, and it has in is interior particular rings in iron.


This technique of construction permits having a heel, that adapts itself in a perfectly way to the disk, avoiding the possibility of slipping of the rings to the rim.



THE RINGS OF THE SUPER-ELASTIC SERIE CAN BUILT WITH BLENDS TOO

Trackless
This is a line which was born for being put on mechanical-ploughs, floor-disher, or on other machines, that work in ambient, where the cleanness and the hygiene are in the first place.This blend has a peculiarity: it doesn't stain the area during its passage, and it resists chemical weapons, however maintaing an optimal fluency and a good resistance to the abrasion.
Warmthless

It's a line used on superficies with temperature between 100° and 130°.



 "Grecate"

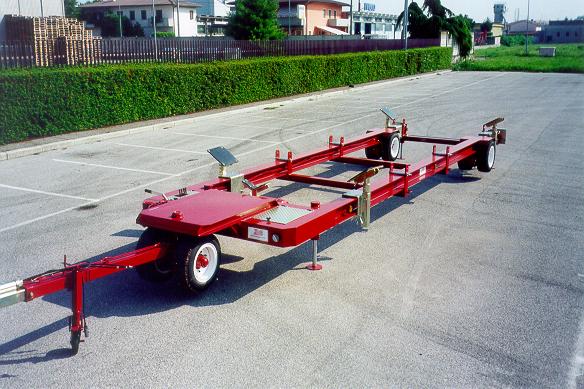

This is a line realized with a constructive technique relatively simply, for the common uses of handling, to make very competitive the economic value of every ring.This line is principally used on drawn trucks , where are privileged big capacity to maximum speed of 10 Km/h.
* TO REQUEST CAN BE GIVEN HUBS AND DISKS
* THE CAPACITIES UNDER REPORTED ARE EFFECTIVE FOR MAXIMUM SPEEDS OF 20 KM/H
ARTICLES
MEASURES OF RINGS
(mm)

 TYPES OF CIRCLE
MEASURES OF
 CIRCLE
(mm)
CAPACITY
 OF
 SWERVINGWHEEL
Kg
CAPACITY OF
 CARRYING
 WHEEL
Kg
b                 a c                  d
210x4R 210            72 2.12-4 101,6           51,3 130 205
3.00x4 247            80 2.12-4 101,6           63,5 195 260
320x8R 320          107 3.00-8 202,4           76,2 400 500
320x100.4R 310          103 2.50C-4 101,6           63,5 420 520
4.00-4 315          110 2.50C-4 101,6           63,5 420 520
4.00-8 415          110 3.00D-8 202,4           76,2 720 900
5.00-8 450          115 3.00D-8 202,4           76,2 900 1000
15x4.5-8 380          115 3.00D-8 202,4           76,2 720 940
15x4.5-8R 380          115 3.00D-8 202,4           76,2 720 940
16x6-8 415          150 4.33R-8 202,4            110 970 1260
18x7-8 450          155 4.33R-8 203,2            110 1200 1500
6.00-9 515          150 4.00E-9  227,8        101.6 1300 1650
21x8-9 505          175 6.00E-9 227,8         152,4 2100 2800
6.50-10 565          165 5.00F-10 253,2            127 1780 2310
7.50-10 620          185 5.50F-10 253,2         139,7 2100 2600
23x9-10 560          210 6.50F-10 253,2         165,1 2430 3160
7.00-12 645          180 5.00S-12 308.8           127 2200 2750
27x10-12 645          240 8.00G-12 308,8        203,2 2935 3810
7.50-15 730          210 6.5-15 385,8        165,1 3050 3800
8.25-15 790          215 6.5-15 385,8        165,1 3650 4750
250-15 700          215 7.0-15 380,2        177,8 3700 4800
300-15 790          235 8.0-15 385,8        203,2 4410 5725

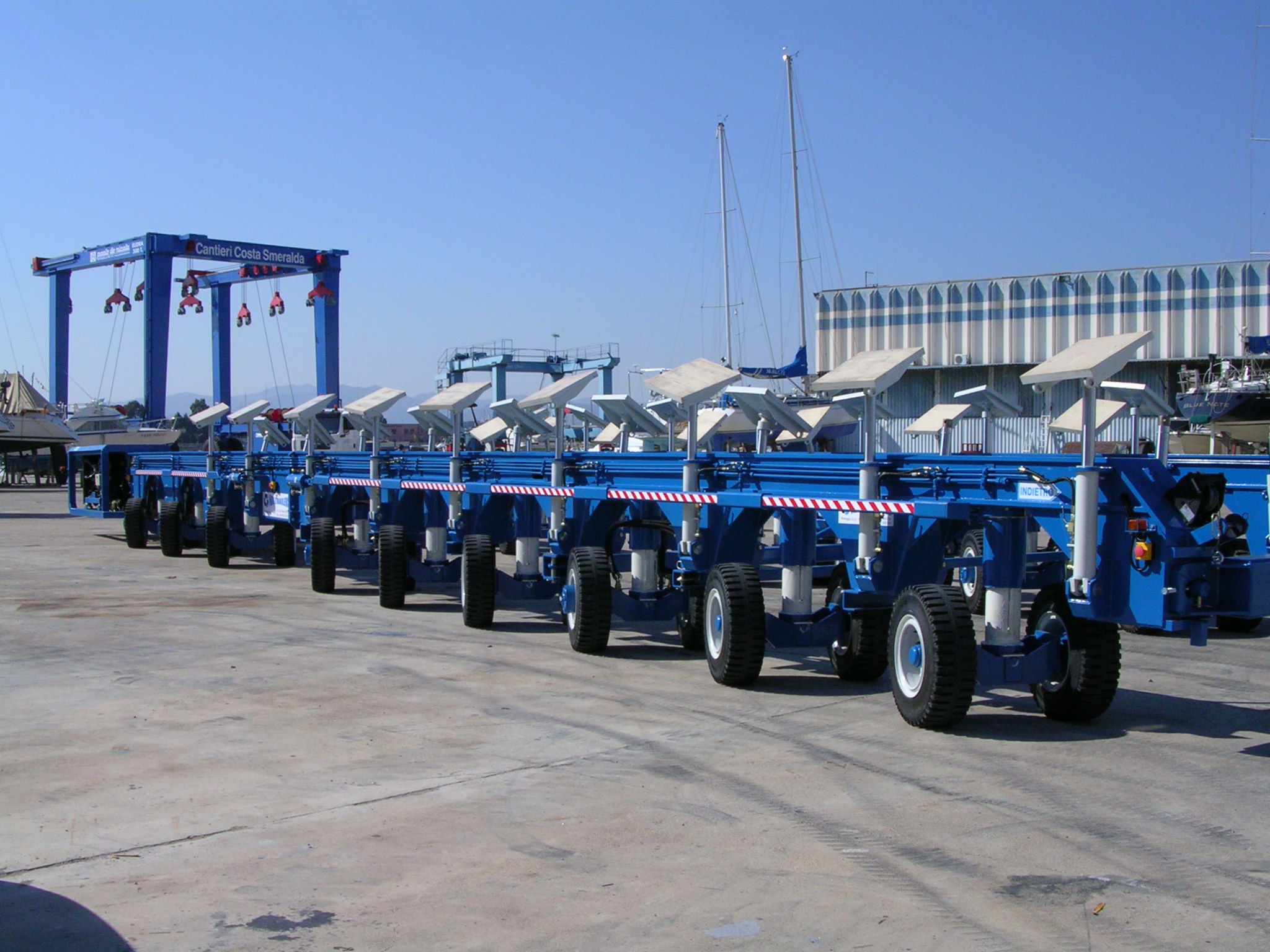

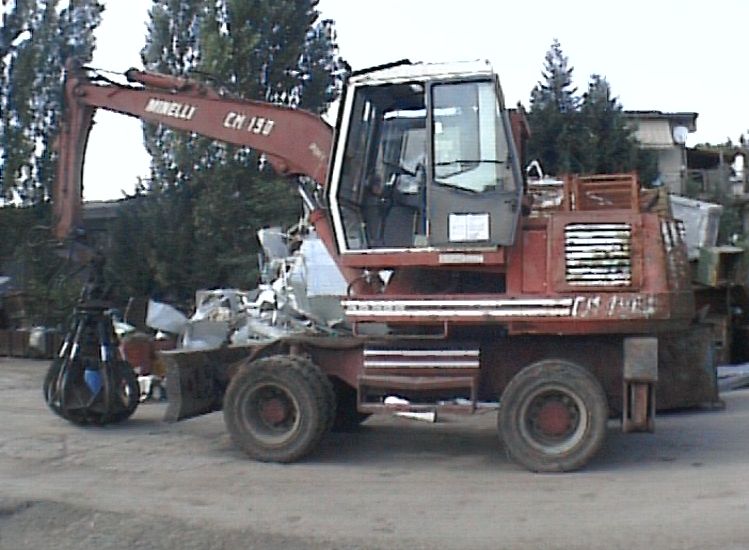

RUOTE PER CARRELLONI E MANIPOLATORI IDRAULICI



ARTICLES
MEASURES OF RINGS
(mm)

 TYPES OF CIRCLE
MEASURES OF
 CIRCLE
(mm)
CAPACITY
 OF
 SWERVINGWHEEL
Kg
CAPACITY OF
 CARRYING
 WHEEL
Kg
b                 a c                  d
8.25-20 940          215 6.5-20 512,8        165,1 3675 4800
8.25-20 940          230 7.0-20 512,8        177,8 3675 4800
9.00-20 940          230 7.0-20 512,8        177,8 3675 4800
10.00-20
1010        280
 7.5-20 512,8        203,2  5000  6000
10.00-20 1010        280 8.0-20 512,8        203,2 5000 6000

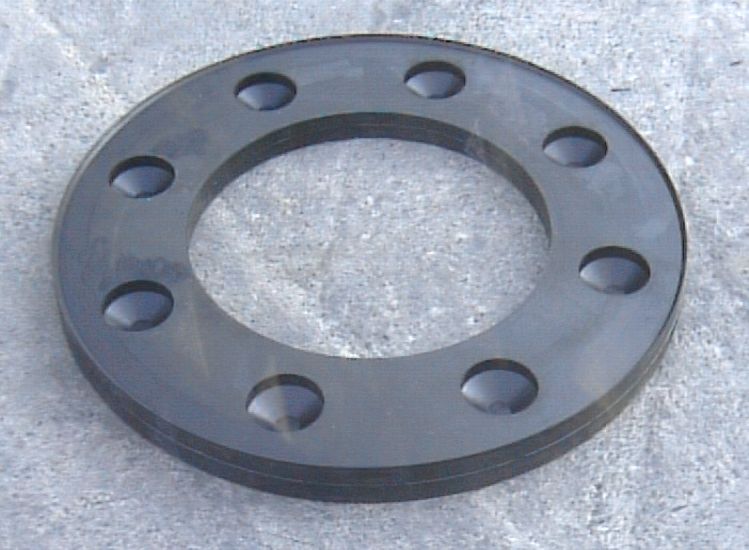

SPACERS

To be mounted between twin tyres, avoid breaches on internal flanks caused by transit on cutting objects.

Spessore
H60		 Peso
Kg 15
Spessore
H75		 Peso
Kg 19,5
Spessore
H90		 Peso
Kg 25,5
